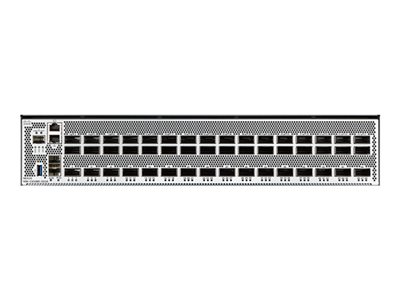

- Product Description Cisco Nexus 9348D-GX2A - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Rack-mountable 2U
- Subtype 400 Gigabit Ethernet
- Ports 48 x 400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+
- Performance Bandwidth: 38.4Tbps ¦ Forwarding rate: 8.35Bpps ¦ Throughput: 19.2 Tbps ¦ Buffer memory: 120 MB ¦ Latency: 1.4 µs
- Capacity Longest prefix match (LPM) entries (IPv4): 1000000 ¦ Host table entries (IPv4): 1000000 ¦ MAC address entries: 500000 ¦ Multicast routes: 256000 ¦ IGMP snooping groups (maximum): 32000 ¦ ACL entries (ingress): 48000 ¦ ACL entries (egress): 24000 ¦ Maximum number of VLANs: 4096 ¦ Virtual Routing and Forwarding (VRF) instances: 16000 ¦ ECMP paths: 64 ¦ Port channels: 512 ¦ Maximum number of links in a port channel: 32 ¦ SPAN sessions: 32 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ HSRP groups: 1000 ¦ MST instances: 64 ¦ NAT entries: 2000 ¦ Queues: 8
- MAC Address Table Size 512K entries
- Routing Protocol OSPF, RIP-2, BGP, EIGRP, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS, RSVP
- Remote Management Protocol HTTP, NETCONF, RESTCONF, YANG
- Features STP support, DCBX support, ACL support, ECMP, DCB, MSDP, vPC technology, MACsec support, 4 fans, RoCE, breakout capability, ECN, PFC, VXLAN, EVPN, SDN, POAP, 3+1 redundant fans, PSI, ETS, scalable, AFD, ETRAP, DPP, SRv6 support, 6 cores CPU, Cisco ACI Spine and Leaf support
- Power AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH) 17.4 in x 29.8 in x 3.4 in
- Weight 51.15 lbs
- System Requirements Cisco NX-OS
- Manufacturer Warranty 1-year warranty
|
