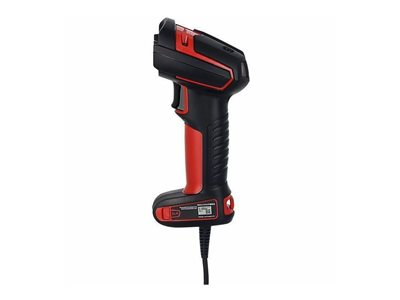

USB Kit Tethered. 1D/2D, XLR focus,
USB Kit Tethered. 1D/2D, XLR focus,
- Price:
$892.99
- Availability:
- Mfr #: 1990IXLR-3USB-N
- UNSPSC #: 43211711
- Item #: 009963125
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IP67, IP65, MIL-STD 810G |
Dimensions & Weight
| Width | 3 in |
| Depth | 7.6 in |
| Height | 3.9 in |
| Weight | 11.29 oz |
Barcode
| Minimum Bar Width | 5 mil |
| Scan Engine Focus Range | Longe Range (LR) |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Max Working Distance | 79 ft |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 45 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | PDF417, DotCode, Code 39, Data Matrix, QR code, UPC |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Vibration, beeper, LED indicator |
| Features | Rugged, 20 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge), Digimarc Barcode Technology |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Drop Specification | 10 ft |
General
| Color | Black |
Expansion / Connectivity
| Interfaces | Keyboard wedge / USB / RS-232 |
Power
| Power Device | Barcode scanner charging stand |
| Voltage | DC 4 - 5.5 V |
| Power Consumption Operational | 2.35 Watt |
| Electric Current Required | 100 mA (standby), 470 mA (operating) |
