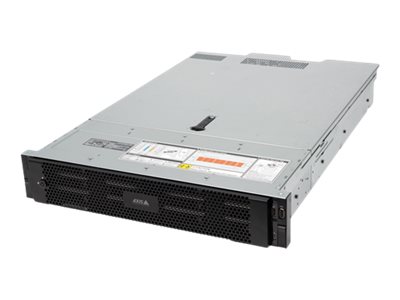

S1232 RACK 32 TB
S1232 RACK 32 TB
- Price:
$9,670.99
- Availability:
- Mfr #: 02538-001
- UNSPSC #: 26121604
- Item #: 010082789
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Static rails |
| Cables Included | Power cable (C13-C14) (2 pcs.) |
| Compliant Standards | EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 15 A, FCC Part 2, ICES-003 Class A, AS/NZS CISPR 32 Class A, BSMI, KS C 9832 Class A, KS C 9835, VCCI 32-1, EN 62311, IEC/EN/UL 62368-1, NOM-019-SCFI-1998, NDAA, FIPS 140-2 Level 1 |
| TAA Compliant | Yes |
Networking
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | 64 validated video channels |
Dimensions & Weight
| Width | 23.6 in |
| Depth | 19 in |
| Height | 1.7 in |
| Weight | 28.44 lbs |
Hard Drive
| Type | HDD - hot-swap |
| Capacity | 4 x 8 TB |
| Features | Enterprise, RAID 5 - factory configured |
Graphics Controller
| Video Interfaces | DisplayPort |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 80% (non-condensing) |
General
| Localization | Region: Argentina, Australia, Brazil, Europe, Japan, Korea, United Kingdom, United States |
Processor / Chipset
| CPU | Intel Xeon E |
| CPU Qty | 1 |
Expansion / Connectivity
| Interfaces | 1 x USB 2.0 (1 in front) ¦ 1 x USB 2.0 (1 rear) ¦ 1 x USB 3.2 (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x VGA (1 rear) ¦ 1 x serial (1 rear) ¦ 1 x (1 front) (iDRAC Direct port) ¦ 1 x (1 rear) (iDRAC dedicated port) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 600 Watt |
| Power Consumption Operational | 158 Watt |
Operating System / Software
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software | AXIS Camera Station (32 channels license) |
RAM
| Installed Size | 16 GB |
| Configuration Features | 2 x 8 GB |
Optical Storage
| Type | No optical drive |
