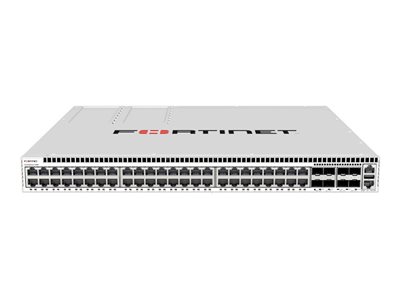

Fortinet FortiSwitch 648F - switch - 48 ports - managed - rack-mountable
Fortinet FortiSwitch 648F - switch - 48 ports - managed - rack-mountable
- Price:
$8,972.99
- Availability:
- Mfr #: FS-648F
- UNSPSC #: 26121604
- Item #: 010347541
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 4 rubber feet |
| Cables Included | 1 x console cable ¦ 2 x AC power cable |
| Rack Mounting Kit | Included |
| MTBF | >10 years |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 15.76 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 32 x 10/100/1000/2.5G + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 |
| Performance | Switching capacity: 720 Gbps ¦ Packets per second: 1071 Mpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 56 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Features | Auto-negotiation, VLAN support, wake on LAN (WOL), IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Time Domain Reflectometry (TDR), STP Root Guard, DHCP relay, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, Network Access Control (NAC), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), MACsec support, Storm Control, MLD proxy, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, Encapsulated Remote SPAN (ERSPAN), port trunking, MAC Access Bypass (MAB), SPAN mode, MLD querier, Media Dependent Interface (MDI), Automatic Media-Dependent Interface Crossover (MDIX), VLAN / port mapping, MAC black/whitelist, FTP support, Rapid PVST (RPVST) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Power, alarm, fan, link/activity/speed |
Expansion / Connectivity
| Interfaces | 32 x 1/2.5GBase-T RJ-45 ¦ 16 x 100/1000/2.5G/5GBase-T RJ-45 ¦ 8 x 1/10/25GBase-X SFP28/SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 350 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
