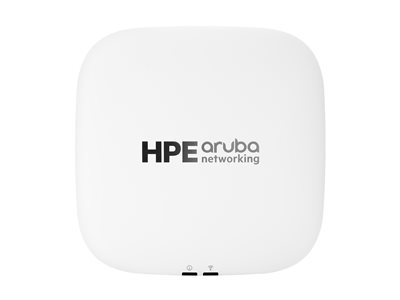

HPE ARUBA NETWORKING AP-503R-EG AP
  • Price:
    $468.99
« Back

HPE ARUBA NETWORKING AP-503R-EG AP

HPE ARUBA NETWORKING AP-503R-EG AP

  • Price:
    $468.99
  • Availability:
  • Mfr #:  R8N01A
  • UNSPSC #:  43222631
  • Item #:  010831705
  • Add to Shopping List
  • cnet cat code #:  10050703
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories AC power adapter & plug
MTBF 71 years
Compliant Standards FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN 60601-1-2
Pricing Type BTO
Networking
Form Factor Desktop
Connectivity Technology Wireless
Data Transfer Rate 1.49 Gbps
Line Coding Format BPSK, QPSK, CCK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM
Data Link Protocol IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0
Spread Spectrum Method DSSS, OFDM, OFDMA
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps
Capacity Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8
Status Indicators Power, system, status
Features 2x2:2 streams, DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), packet aggregation A-MPDU, packet aggregation A-MSDU, High-Throughput (HT) support, 2x2 MIMO technology, Very High Throughput (VHT) support, High Efficiency (HE) support, Target Wait Time (TWT), Trusted Platform Module (TPM), security slot (Kensington security lock compatible)
Encryption Algorithm WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Compliant Standards Wi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.3az
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 95% RH
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 5.9 in
Depth 5.9 in
Height 1.5 in
Weight 11.29 oz
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB
Dimensions & Weight (Shipping)
Shipping Width 9.4 in
Shipping Depth 6.7 in
Shipping Height 2 in
Shipping Weight 21.16 oz
Power
Power Device External power adapter
Antenna
Antenna Internal
Antenna Qty 2
Directivity Omni-directional
Software / System Requirements
OS Required ArubaOS, InstantOS 10.5.0.0
