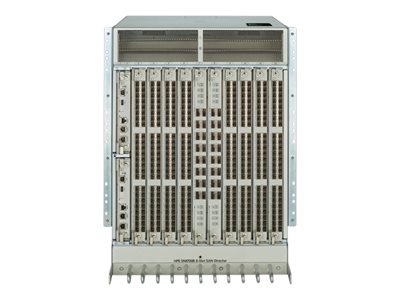

HPE SN8700B 8-slot Power Pack+ Director - switch - managed - rack-mountable
HPE SN8700B 8-slot Power Pack+ Director - switch - managed - rack-mountable
- Price:
$261,732.99
- Availability:
- Mfr #: R6A97AR
- UNSPSC #: 43222612
- Item #: 010834349
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rack rails kit, 2 control processors, 2 x 64 Gb core blades |
| Compliant Standards | FIPS 140-2 Level 2, USGv6 |
| Pricing Type | Remarketed |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 24 in |
| Height | 24.1 in |
| Weight | 78.51 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 93% (non-condensing) |
General
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 14U |
| Subtype | Fibre Channel |
| Performance | Aggregate bandwidth: 31 TBps |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP, DHCP, LDAP |
| Encryption Algorithm | 256-bit AES-GCM, TLS 1.2, TLS 1.3 |
| Authentication Method | RADIUS, TACACS+, DH-CHAP, FCAP |
| Features | Syslog support, IPv6 support, FCS, SCP, RBAC, secure boot, RESTful APIs |
Expansion / Connectivity
| Interfaces | 2 x management (Gigabit LAN) RJ-45 ¦ 2 x serial RJ-45 console ¦ 2 x USB Type A |
| Expansion Slots | 8 (total) / 8 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 8 (max) |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 4 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 2+2 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Software / System Requirements
| Software Included | Brocade Advanced Web Tools, Brocade SANnav Management Portal, Brocade SANnav Global View, HPE Fabric Vision Enhanced Group Management, HPE Extended Fabrics, HPE Adaptive Networking, HPE ISL Trunking, HPE Zoning, HPE FICON CUP |
