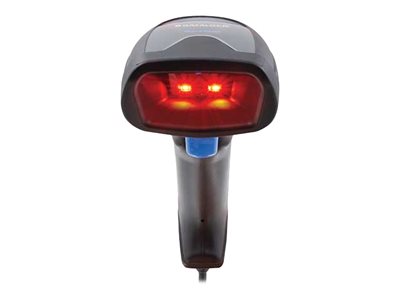

QuickScan QW2520, 2D VGA Imager, USB BLK
QuickScan QW2520, 2D VGA Imager, USB BLK
- Price:
$96.99
- Availability:
- Mfr #: QW2520-BKK1
- UNSPSC #: 43211711
- Item #: 010841951
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | USB cable - external |
| Compliant Standards | RoHS, IP52 |
Dimensions & Weight
| Width | 2.7 in |
| Depth | 5 in |
| Height | 5.8 in |
| Weight | 5.11 oz |
Barcode
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - red LED |
| Sensor Resolution | 640 x 480 |
| Light Source Wave Length | 624 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 15.7 in |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 93, Code 39, Code 49, GS1 DataBar, UPC A Composite, UPC E Composite, MicroPDF417, Australian Post, British Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Postnet, Royal Mail, Aztec code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR code, QR code, DotCode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology, Remote Systems Management |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 5 ft to concrete |
General
| Type | Barcode scanner - handheld |
| Color | Black |
Software
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
Expansion / Connectivity
| Interfaces | 1 x USB - Type A |
Power
| Electric Current Required | 400 mA (typical), 90 mA (standby) |
