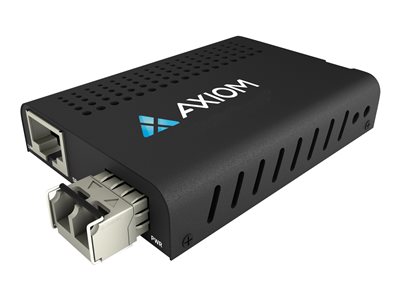

TAA RJ45 TO 1000BASE-SX LC MEDIA CONV
TAA RJ45 TO 1000BASE-SX LC MEDIA CONV
- Price:
$168.99
- Availability:
- Mfr #: AXG99290
- UNSPSC #: 43222630
- Item #: 010844602
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| TAA Compliant | Yes |
Networking
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-SX, 1000Base-LX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 1.2 miles |
| Features | 16 KB Jumbo Frame, auto-uplink (auto MDI/MDI-X), auto-negotiation, Link Fault Pass Through function (LFP), 384KB packet buffer, built-in DIP switch, full duplex mode, half duplex mode, flow control, LED status indicators, Automatic Link Restoration, collision domain elimination |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Dimensions & Weight
| Width | 2.9 in |
| Depth | 4 in |
| Height | 0.9 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Fiber media converter |
| Form Factor | External |
Expansion / Connectivity
| Interfaces | 1 x Ethernet 10Base-TX/100Base-TX/1000Base-TX - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - LC Duplex multi-mode female x 2 |
Power
| Power Device | Internal power supply |
| Voltage Required | DC 5 / 12 V |
| Power Consumption Operational | 2 Watt |
