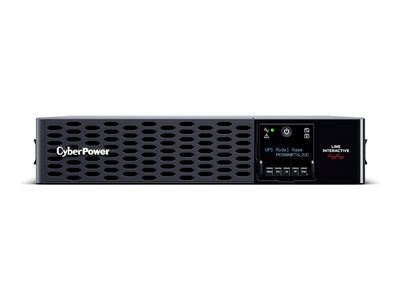

2U 8X5-20R + 1XL5-30R, CLOUD
2U 8X5-20R + 1XL5-30R, CLOUD
- Price:
$2,234.99
- Availability:
- Mfr #: PR3000RTXL2UC
- UNSPSC #: 24102001
- Item #: 010929970
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft ¦ USB cable - external ¦ Emergency power off cable - external |
| Equipment Protection Value | 400000 US Dollars |
| Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, overload protection, reset breaker |
| Compliant Standards | FCC Class A certified, RoHS, VCCI Class A, CSA C22.2 No. 107.3, UL 1778, WEEE |
Networking
| Remote Management Interface | RS-232, USB, Ethernet |
| Remote Management Protocol | HTTP |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 19.7 in |
| Height | 3.4 in |
| Weight | 75.4 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 1.7 min at full load ¦ 7 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 4 ms |
| Features | Sealed, hot-swappable |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 100-120 V |
| Input Voltage Range (Adjustable) | AC 70 - 155 V |
| Frequency Provided | 50 - 60 Hz ± 1% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 8 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R |
| Output Voltage | AC 100/110/120/125 V + 5% / - 5% - 50 - 60 Hz |
| Power Capacity | 3000 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) ¦ 1 x management (Ethernet) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x dry contact ¦ 1 x management |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
Dimensions & Weight (Shipping)
| Shipping Width | 22 in |
| Shipping Depth | 24 in |
| Shipping Height | 10.5 in |
| Shipping Weight | 89.29 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
