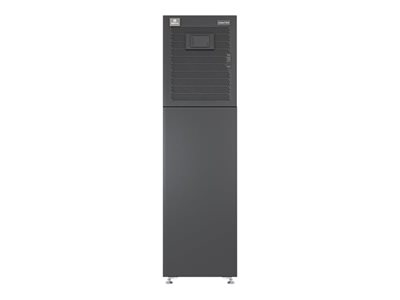

EXS 20KVA UPS WITH INTERNAL VRLA BATTERY AND IS-UNITY-DP NETWORK COMMU
EXS 20KVA UPS WITH INTERNAL VRLA BATTERY AND IS-UNITY-DP NETWORK COMMU
- Price:
$19,906.99
- Availability:
- Mfr #: EXS20KN
- UNSPSC #: 39121011
- Item #: 010951013
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | IS-Unity DP communication card |
| Features | HTTP support, BACNET support, built-in maintenance bypass, overvoltage protection, undervoltage protection, double conversion, noise suppression, transient surge protection |
| Compliant Standards | CSA, UL 1778, ISO 14001, Energy Star 2.0 |
Networking
| Remote Management Interface | USB |
| Remote Management Protocol | SNMP, Modbus |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 29.5 in |
| Height | 63 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Battery
| Technology | Valve regulated lead-acid (VRLA) |
| Run Time (Up To) | 15 min at half load |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dB |
General
| Device Type | UPS - external |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208 - 120 V / 220 - 127 V |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Output Voltage | AC 208 - 120 V / 220 - 127 V |
| Power Capacity | 20 kW / 20000 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Efficiency | 96.2% |
| Power Factor (PF) | 1.0 |
Expansion / Connectivity
| Interfaces | 1 x USB ¦ 2 x dry contact input ¦ 2 x dry contact output |
| Expansion Slots | 2 (total) / 2 (free) x Liebert IntelliSlot |
Software / System Requirements
| Software Included | Vertiv Power Insight |
