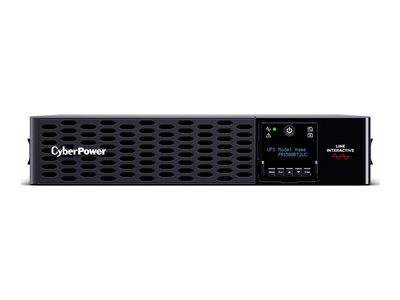

1500VA/1500W SINE WAVE UPS 2U 8XNEMA 5-15R 10 CORD CLOUD
1500VA/1500W SINE WAVE UPS 2U 8XNEMA 5-15R 10 CORD CLOUD
- Price:
$1,160.99
- Availability:
- Mfr #: PR1500RT2UC
- UNSPSC #: 39121011
- Item #: 011054178
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - external - 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ Emergency power off cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 400000 US Dollars |
| Features | Metal housing, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, reset breaker, PFC function, rotatable LCD panel, GreenPower UPS Bypass Technology, Fast Charge technology, Human Interface Device (HID) support, internal current limiting, color-coded labels, Impedance Tolerant EMI/RFI filtering |
| Compliant Standards | FCC Class B certified, UL 1778, RoHS, CSA C22.2 No. 107.3, DOE |
Networking
| Remote Management Interface | Ethernet, RS-232, USB |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 16.2 in |
| Height | 3.4 in |
| Weight | 55.8 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 18.2 min at half load ¦ 6.5 min at full load |
| Recharge Time | 3 hours |
| Transfer Time | 4 ms |
| Features | Sealed, hot-swappable |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 52.5 dBA |
General
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 100-125 V |
| Input Voltage Range | AC 75 - 149 V |
| Input Voltage Range (Adjustable) | AC 70 - 155 V |
| Frequency Provided | 50/60 Hz ± 1% |
| Input Voltage Margin | ± 5% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 100/110/120/125 V ± 5% - 50/60 Hz |
| Power Capacity | 1500 Watt / 1500 VA |
| Dataline Surge Protection | Network - RJ-45 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x dry contact ¦ 1 x sensor ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Dimensions & Weight (Shipping)
| Shipping Width | 22.1 in |
| Shipping Depth | 20.9 in |
| Shipping Height | 10.8 in |
| Shipping Weight | 63.69 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
