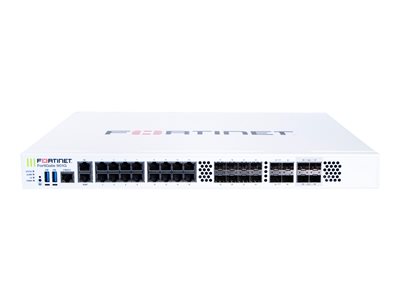

Fortinet FortiGate 900G - security appliance - with 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection
Fortinet FortiGate 900G - security appliance - with 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection
- Price:
$40,898.99
- Availability:
- Mfr #: FG-900G-BDL-809-12
- UNSPSC #: 43222501
- Item #: 011305794
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 2 SX SFP transceivers |
| Compliant Standards | UL, VCCI, cUL, CB, FCC Part 15 A, RCM, USGv6 |
Networking
| Form Factor | Rack-mountable |
| Airflow Direction | Front and side to back |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | HTTP, HTTPS |
| Performance | IPS throughput (enterprise traffic mix): 26 Gbps ¦ NGFW throughput (enterprise traffic mix): 22 Gbps ¦ Threat protection throughput (enterprise traffic mix): 20 Gbps ¦ IPv4 firewall throughput (1518-byte UDP): 164 Gbps ¦ IPv4 firewall throughput (512-byte UDP): 163 Gbps ¦ IPv4 firewall throughput (64-byte UDP): 153 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 164 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 163 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 153 Gbps ¦ Firewall latency (64-byte UDP): 3.78 µs ¦ Firewall throughput: 229.5 Mpps ¦ VPN throughput (512-bit IPSec): 55 Gbps ¦ VPN throughput (SSL): 10 Gbps ¦ SSL inspection throughput: 16.7 Gbps ¦ Application control (HTTP 64K): 74.8 Gbps ¦ CAPWAP Throughput (HTTP 64K): 70 Gbps ¦ Firewall latency (64-byte UDP, ULL ports): 2.5 µs |
| Capacity | Concurrent TCP sessions: 16000000 ¦ New TCP sessions per second: 720000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 18000 ¦ SSL inspection concurrent sessions: 1600000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 96 ¦ Number of FortiAP devices: 1024 ¦ Number of FortiAP devices (tunnel): 512 ¦ Maximum number of FortiTokens: 5000 |
| Status Indicators | Power, status, alarm, HA |
| Features | VPN support, High Availability, Trusted Platform Module (TPM), CAPWAP support, SD-WAN support, machine learning, Zero Trust Network Access (ZTNA), AI powered |
| Encryption Algorithm | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Security appliance |
| Bundled Services | 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 15 in |
| Height | 1.7 in |
| Weight | 15.98 lbs |
Processor / Memory / Storage
| Processors Installed | Fortinet FortiASIC CP9/NP7 |
Expansion / Connectivity
| Interfaces | 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet (ultra-low latency) - SFP/SFP+/SFP28 ¦ 4 x 1 Gigabit Ethernet/10Gb Ethernet - SFP/SFP+ ¦ 8 x 1000Base-X - SFP ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x 1/2.5 Gigabit Ethernet (High Availability) - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB - Type A |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 134 Watt |
| 80 PLUS Certification | 80 PLUS |
Software / System Requirements
| OS Provided | FortiOS |
