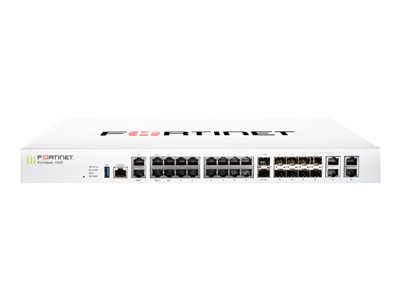

FORTIGATE-101F HARDWARE PLUS 3 YEAR HARDWARE PLUS FORTICARE
FORTIGATE-101F HARDWARE PLUS 3 YEAR HARDWARE PLUS FORTICARE
- Price:
$7,211.99
- Availability:
- Mfr #: FG-101F-BDL-809-36
- UNSPSC #: 43222501
- Item #: 011306780
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, FCC Part 15 B Class A, RCM, USGv6 |
Networking
| Form Factor | Rack-mountable |
| Airflow Direction | Side to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | HTTP, HTTPS |
| Performance | IPS throughput: 2.6 Gbps ¦ NGFW throughput: 1.6 Gbps ¦ Threat protection throughput: 1 Gbps ¦ Firewall throughput (1518-byte UDP): 20 Gbps ¦ Firewall throughput (512-byte UDP): 18 Gbps ¦ Firewall throughput (64-byte UDP): 10 Gbps ¦ Firewall latency (64-byte UDP): 4.97 µs ¦ Firewall throughput: 15 Mpps ¦ VPN throughput (512-bit IPSec): 11.5 Gbps ¦ VPN throughput (SSL): 1 Gbps ¦ SSL inspection throughput: 1 Gbps ¦ Application control throughput: 2.2 Gbps ¦ CAPWAP throughput: 15 Gbps |
| Capacity | Concurrent TCP sessions: 1500000 ¦ New TCP sessions per second: 56000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 16000 ¦ Concurrent SSL VPN users: 500 ¦ SSL inspection CPS: 1800 ¦ SSL inspection concurrent sessions: 135000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 32 ¦ Number of FortiAP devices: 128 ¦ Number of FortiAP devices (tunnel): 64 ¦ Number of FortiToken devices: 5000 |
| Status Indicators | Power, status, alarm, HA |
| Features | VPN support, CAPWAP support, SSL inspection, SD-WAN support |
| Encryption Algorithm | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 7.56 lbs |
Processor / Memory / Storage
| Processors Installed | 1 x Fortinet FortiASIC SOC4 |
| Hard Drive | SSD 480 GB x 1 |
Expansion / Connectivity
| Interfaces | 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x 1000Base-T (HA) - RJ-45 ¦ 12 x 1000Base-T - RJ-45 ¦ 2 x 10GBase-X (FortiLink) - SFP+ ¦ 4 x 1000Base-X - SFP ¦ 4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 35.3 Watt |
| 80 PLUS Certification | 80 PLUS |
Software / System Requirements
| OS Provided | FortiOS |
