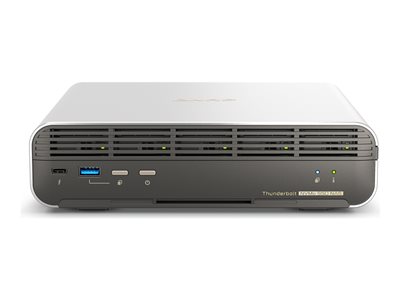

QNAP TBS-H574TX-I5-16G 5-BAY A
QNAP TBS-H574TX-I5-16G 5-BAY A
- Price:
$1,565.99
- Availability:
- Mfr #: TBS-H574TX-I5-16G-US
- UNSPSC #: 43222500
- Item #: 011332593
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processors Installed | 1 x Intel Core i5 1340PE |
| Number of Cores | 12-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 4.5 GHz |
| RAM | 16 GB (installed) / 16 GB (supported) |
| Flash Memory Installed | 5 GB |
Miscellaneous
| Cables Included | 1 x network cable |
| Included Accessories | Power cable |
Networking
| Data Link Protocol | 10GbE, 5GbE, 2.5GbE, 100Mb LAN, 1GbE |
| Network / Transport Protocol | IPv4, IPv6, PPTP, L2TP, IPSec, OpenVPN, WireGuard, QBelt, QuFTP |
| Remote Management Protocol | SNMP 2, SNMP 3, SFTP, TFTP, SSH, Telnet, HTTP, HTTPS |
| Network Services Compatibility | Apple File Protocol (AFP), FTP, Server Message Block (SMB), Microsoft CIFS, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 1500 |
| Features | Floating point unit, Encryption Engine, built-in hardware transcoding, Jumbo Frames support, USB One Touch Copy, reset button, 2 fans, built-in buzzer, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, auto tiering, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Group, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), domain security, Domain Controller, Windows ACL, Resource Monitor, Smart Fan, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Windows ODX, Qsync, HybridMount, hybrid backup sync, Hyper Data Protector, Boxafe, Qsirch, QuMagie, antivirus analysis, QVPN Service, HD Station, LDAP server, SQL Server, Qfiling, media streaming add-on, QmailAgent, QuWAN, DA Driver Analyzer, RADIUS support, file station, FTP server, Object Storage |
| Encryption Algorithm | FIPS 140-2, 256-bit AES, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3 |
Storage Controller
| Type | RAID |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60, RAID 60 hot spare |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
General
| Built-in Devices | LED panel |
| Localization | United States |
Expansion / Connectivity
| Expansion Bays | 5 (total) / 5 (free) x hot-swap |
| Expansion Slots | 5 (total) / 0 (free) x PCI Express 3.0 x2 ¦ 5 (total) / 5 (free) x M.2 2280 |
| Interfaces | 1 x 2.5 Gigabit Ethernet ¦ 1 x Ethernet 10Gb ¦ 2 x Thunderbolt 4 ¦ 1 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output |
Power
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 46 Watt |
| Power Provided | 120 Watt |
Software / System Requirements
| Storage Operating System | QNAP QuTS hero h5.1.3 / QTS 5.1.3 |
| Software Included | McAfee AntiVirus, IronWolf Health Management |
| OS Required | Apple macOS 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
