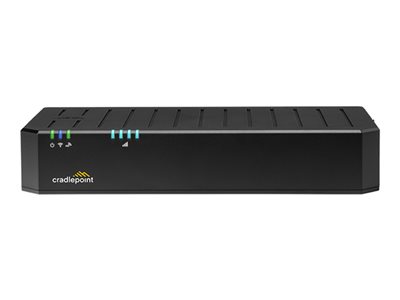

1YR NETCLOUD SMALL BR ESSEN PLAN ADV PLAN E100 ROUTER W WIFI
1YR NETCLOUD SMALL BR ESSEN PLAN ADV PLAN E100 ROUTER W WIFI
- Price:
$1,273.99
- Availability:
- Mfr #: BKA1-01005GC-GN
- UNSPSC #: 43222628
- Item #: 011521943
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 4 rubber feet, 2 x SIM door screw, 4 x cellular antennas, power supply |
| Cables Included | 1 x network cable - 5 ft |
| MTBF | 527,789 hours |
| Localization | Canada, United States |
Dimensions & Weight
| Width | 10.6 in |
| Depth | 5.3 in |
| Height | 1.9 in |
| Weight | 29.27 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime ¦ Technical support - phone consulting - 1 year ¦ Product info support - web support - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
Communications
| Type | Wireless cellular modem |
| Cellular Protocol | UMTS, HSPA+, LTE Advanced Pro, 5G NR |
| Generation | 3G, 4G, 5G |
| Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B46, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, 5G n78, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n25, 5G n28, 5G n40, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n48, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B19, 5G n29, 5G n30, 5G n75, 5G n13, 5G n14, 5G n18, 5G n76, 5G n26, 5g n70 |
| Max Transfer Rate | 3.4 Gbps |
General
| Device Type | Wireless router - 4-port switch (integrated) |
| Bundled Services | 1 year NetCloud Small Branch Essentials and Advanced Plan |
| Enclosure Type | Desktop, wall-mountable, ceiling-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Stateful firewall throughput: 850 Mbps ¦ IPS throughput: 250 Mbps ¦ VPN throughput (IPSec): 40 Mbps ¦ Maximum throughput (2.4 GHz): 300 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps |
| Capacity | Concurrent VPN tunnels: 20 ¦ Concurrent TCP sessions: 32000 ¦ Wireless clients per Wi-Fi radio: 124 |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Features | VPN support, DFS support, IPS, security lock slot (cable lock sold separately), 2x2 MU-MIMO technology, Zero-Touch Deployment, SecureBoot, passive GNSS, 3GPP Release 16 |
| Compliant Standards | Wi-Fi CERTIFIED, UL, cUL, RoHS, WEEE, REACH, TSCA, CP65, IEC 62368-1, CB Scheme |
| Status Indicators | Power, signal strength, link/activity/speed, Wi-Fi, 5G |
Line Properties
| Line Coding Format | 256 QAM |
Expansion / Connectivity
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Antenna: 4 x SMA |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
Power
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
Antenna
| Antenna | External detachable and internal |
