16-port, Layer 3 Etherlighting switch

Need Help? Contact Zones Online support at 800.408.9663

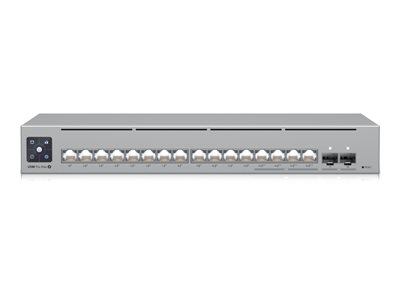

Product Description Ubiquiti UniFi Switch Pro Max 16 PoE - switch - 16 ports - managed - rack-mountable
Device Type Switch - 16 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Ports 12 x 10/100/1000 (12 PoE+, 4 PoE++) + 4 x 2.5GBase-T + 2 x 10 Gigabit Ethernet
Power Over Ethernet (PoE) PoE++
PoE Budget 180 W
Performance Non-blocking switching throughput: 42 Gbps � Switching capacity: 84 Gbps � Forwarding rate: 62.496 Mpps
Routing Protocol STP, RSTP
Features Steel housing, reset button, IGMP snooping, port disable, RSTP support, port isolation, Storm Control, Voice VLAN, port mirroring, port aggregation, LACP, multicast/broadcast rate limiting, MAC address authentication, flow control, 802.1x authentication, Jumbo Frames support, loop protection, DHCP snooping, DHCP protection, egress rate limiting, LLDP-MED, ACL support, DHCP relay, Inter-VLAN Routing, static routing, Etherlighting ports, LED status indicators, VLAN support, PoE+, PoE++
Compliant Standards IEEE 802.1x
Power DC
Dimensions (WxDxH) 12.8 in x 6.3 in x 1.7 in
Weight 4.63 lbs
