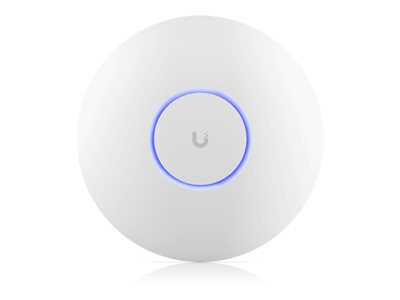

Product Description Ubiquiti UniFi U7 Pro Max - wireless access point - Wi-Fi 7
Device Type Wireless access point
Form Factor Wall / ceiling mountable
Localization United States
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6)
Frequency Band 2.4 GHz, 5 GHz, 6 GHz
Performance Maximum data rate (2.4 GHz): 688 Mbps � Maximum data rate (5 GHz): 8.6 Gbps � Maximum data rate (6 GHz): 5.7 Gbps � Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz
Capacity BSSIDs per radio: 8 � Concurrent clients: 500+ � Spatial streams: 8
Included Accessories Wall/ceiling mounting kit
OS Required UniFi OS
Power Over Ethernet (PoE) Supported PoE+
Power DC 44 - 57 V
Dimensions (WxDxH) 8.1 in x 1.8 in x 8.1 in
Weight 23.98 oz
Designed For P/N: UACC-AP-AM, UACC-U7-COVER
