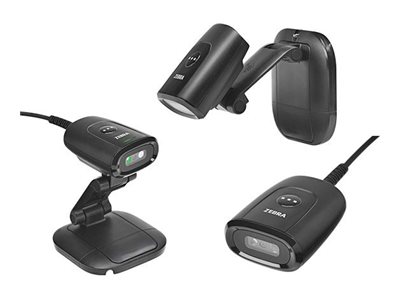

DS5502 AREA IMAGER STD RANGE CORDED WHITE ILLUMIN MIDNIGHT BLK
DS5502 AREA IMAGER STD RANGE CORDED WHITE ILLUMIN MIDNIGHT BLK
- Price:
$392.45
- Availability:
- Mfr #: DS5502-SR40004ZZWW
- UNSPSC #: 43211701
- Item #: 011741846
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 3-in-1 mount |
| Compliant Standards | EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54 |
Networking
| Wireless Connectivity | NFC, Bluetooth 5.0 LE |
Dimensions & Weight
| Width | 2.2 in |
| Depth | 2.8 in |
| Height | 1.2 in |
| Weight | 2.3 oz |
Barcode
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 35.9 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | 15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge) |
Environmental Parameters
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Drop Specification | 5 ft to concrete |
General
| Type | Barcode scanner - desktop |
| Color | Midnight black |
| Localization | Global |
Expansion / Connectivity
| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x USB - Type A |
Power
| Power Device | Power adapter |
| Voltage | 4.75 - 5.25 V |
| Electric Current Required | 360 mA (typical) |
