CISCO BUSINESS 150AX ACCESS POINT
  • Price:
    $148.99
« Back

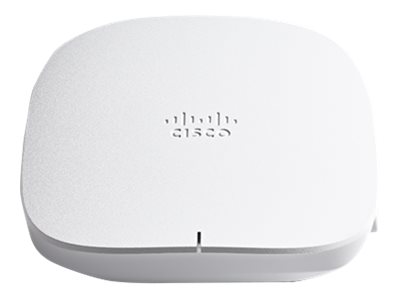

CISCO BUSINESS 150AX ACCESS POINT

CISCO BUSINESS 150AX ACCESS POINT

  • Price:
    $148.99
  • Availability:
  • Mfr #:  CBW150AX-A-EU
  • UNSPSC #:  43222631
  • Item #:  011988410
  • Add to Shopping List
  • cnet cat code #:  10050703
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Ceiling mounting kit
Compliant Standards ARIB STD-66, CAN/CSA C22.2 No. 60950-1, EN 300 328, EN 301 893, EN 50385, EN 60950-1, EN 62368-1, FCC Part 15.247, FCC Part 15.407, IEC 60950-1, IEC 62368-1, RSS-247, UL 60950-1, UL/CUL 62368-1, ARIB STD-T71, EMI Class B, FCC Part 15 B, ICES-003, EN 301489-1, EN 301489-17, EN 55032, EN 55035, FCC OET Bulletin 65c, RSS-102, WEEE
Networking
Form Factor Wall / ceiling mountable
Connectivity Technology Wireless
Data Transfer Rate 1.488 Gbps
Data Link Protocol IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac
Spread Spectrum Method OFDMA
Remote Management Protocol RADIUS, HTTP
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (5 GHz): 1.2 Gbps
Capacity VLANs supported: 16 ¦ Wireless clients per Wi-Fi radio: 200 ¦ Wireless clients: 400
Status Indicators Status
Features Mesh networking, 2x2 MU-MIMO technology, Authentication, Authorization and Accounting (AAA), Target Wait Time (TWT), beamforming technology, BSS Coloring, Maximum Ratio Combining (MRC), DFS support, cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), VLAN support, manageable, 802.1x authentication, wall mountable, Wi-Fi Multimedia (WMM) support
Encryption Algorithm WPA, WPA2, WPA2-Enterprise, WPA3, AES, TLS, TTLS, PEAP, PEAPv1
Authentication Method RADIUS, EAP-FAST, EAP-SIM, EAP-TLS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax, IEEE 802.11i, IEEE 802.11r, IEEE 802.1x, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11h, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Manufacturer Warranty
Service & Support Limited warranty - return to factory - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
General
Device Type Wireless access point
Width 5.9 in
Depth 5.9 in
Height 1.6 in
Weight 11.64 oz
Localization Philippines
Processor / Memory / Storage
Processors Installed 1 GHz
RAM 1 GB
Flash Memory 512 MB
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE) - RJ-45
Power
Power Over Ethernet (PoE) Supported PoE
Power Consumption Operational 9.2 Watt
Antenna
Antenna Internal
Antenna Qty 2
Directivity Omni-directional
