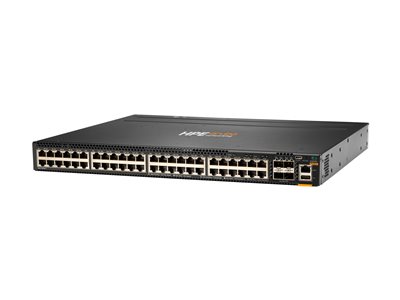

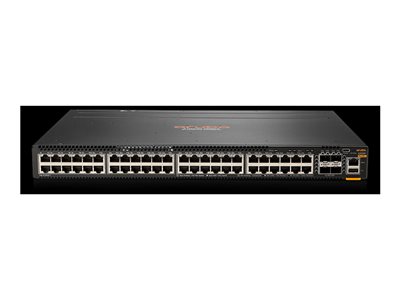

- Product Description HPE Aruba 6300M - switch - 48 ports - managed - rack-mountable - TAA Compliant
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Back to front airflow rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
- Performance Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
- Capacity Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
- MAC Address Table Size 32768 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol EGP, BGP-4, IGMPv2, IGMPv3, IGMP, VRRP, OSPFv2, OSPFv3, MSDP, Bidirectional Forwarding Detection (BFD), policy-based routing (PBR), MLD, MSTP, RSTP, STP, GRE, BGP, OSPF, ECMP, PIM-DM, PIM-SM
- Remote Management Protocol RMON, Telnet, SNMP 3, SNMP, SNMP 2c, TFTP, SSH, CLI, SFTP
- Features DHCP support, MSDP, BSR Mechanism, auto-uplink (auto MDI/MDI-X), VLAN support, Syslog support, High Availability, PVST, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, fan tray, CoS, packet storm protection, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, 2 fan tray slots
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.4 in x 15.2 in x 1.7 in
- Weight 12.57 lbs
- Localization English / United States
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
- Designed For HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
|
