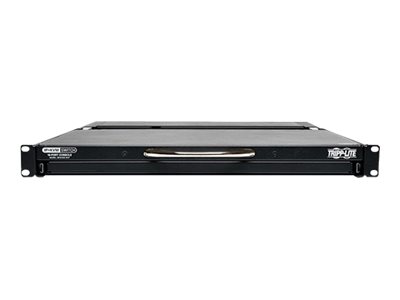

Tripp Lite's B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.
The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.
Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com.
- Product Description Tripp Lite 16-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM - KVM console - 19"
- Device Type KVM console - 19"
- KVM Switch PS/2 - 16 ports
- Features Mouse, keyboard, touchpad, 16-port KVM switch
- Native Resolution 1366 x 768 at 60 Hz
- Voltage AC 120/230 V (50/60 Hz)
- Color Black
- Dimensions (WxDxH) 19 in x 26.8 in x 1.7 in
- Height (Rack Units) 1U
- Weight 37.48 lbs
- Compliant Standards CSA, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, 128-bit SSL
- Manufacturer Warranty 1-year warranty
|
