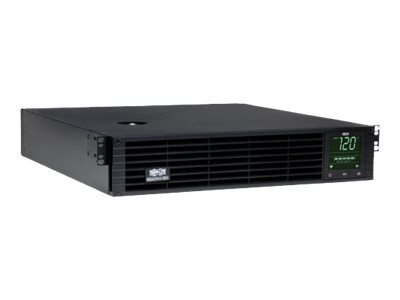

3000VA 2250W UPS SMART LCD RM AVR 120V

3000VA 2250W UPS SMART LCD RM AVR 120V

  • Price:
    $1,475.99
  • Availability:
  • Mfr #:  SMART3000RM2UN
  • UNSPSC #:  39121011
  • Item #:  03971260
  • Add to Shopping List
  • cnet cat code #:  10061401
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Cables Included Power cable 10 ft USB cable - external Serial cable - external EPO cable - external
Rack Mounting Kit Included
Equipment Protection Value 250000 US Dollars
Features Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries
Compliant Standards CSA, NOM, UL 1778, FCC Part 15 A
Networking
Remote Management Interface Ethernet, RS-232, USB
Remote Management Protocol SNMP
Dimensions & Weight
Width 17.5 in
Depth 19.5 in
Height 3.5 in
Weight 62.83 lbs
Manufacturer Warranty
Service & Support Details Limited warranty - 3 years
Battery
Voltage Provided 48 V
Run Time (Up To) 3.5 min at full load 10 min at half load
Recharge Time 4.5 hours
Environmental Parameters
Max Operating Temperature 104 F
Humidity Range Operating 0 - 95% (non-condensing)
General
Device Type UPS - external
Battery Enclosure Type Plug-in module
Height (Rack Units) 2U
Rack Size 19"
Power Device
UPS Technology Line interactive
Input Voltage AC 120 V
Frequency Provided 60 Hz
Frequency Required 60 Hz
Input Connector(s) 1 x power NEMA L5-30
Input Connectors 1 x power NEMA L5-30
Power Output Connectors Details 1 x power NEMA L5-30 8 x power NEMA 5-15/20
Output Voltage AC 120 V 5% - 60 Hz
Power Capacity 2.25 kW / 3000 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 570 Joules
Circuit Protection Circuit breaker
Efficiency 95%+
Expansion / Connectivity
Expansion Slot(s) 1 (total) / 0 (free) x expansion slot
Interfaces 1 x management (Ethernet) - RJ-45 1 x management (USB) 1 x management (RS-232)
Expansion Slots 1 (total) / 0 (free) x expansion slot
Dimensions & Weight (Shipping)
Shipping Width 24.2 in
Shipping Depth 24.4 in
Shipping Height 7.9 in
Shipping Weight 73.85 lbs
Software / System Requirements
Software Included TrippLite PowerAlert
