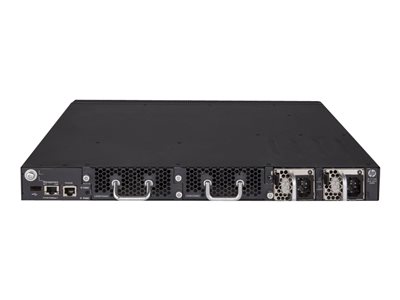

HPE FlexFabric 5700-40XG-2QSFP+ - switch - 40 ports - managed - rack-mountable

HPE FlexFabric 5700-40XG-2QSFP+ - switch - 40 ports - managed - rack-mountable

  • Price:
    $11,861.75
  • Availability:
  • Mfr #:  JG896A
  • UNSPSC #:  43222609
  • Item #:  002163395
  • Add to Shopping List
  • cnet cat code #:  1005
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Compliant Standards GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, EN 60825-1, ANSI C63.4, EN 60825-2, VCCI Class A, AS/NZS CISPR 22, EN 300 386 V1.3.3, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width 17.3 in
Depth 18.1 in
Height 1.7 in
Manufacturer Warranty
Service & Support Details Limited warranty - advance parts replacement - 1 year - response time: 10 days Technical support - phone consulting - 1 year New releases update - 1 year
Environmental Parameters
Max Operating Temperature 113 F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Switch - 40 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 40 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink)
Performance Throughput: 714.2 Mpps Routing/switching capacity: 960 Gbps
Capacity IPv4 routing table entries: 128 IPv6 routing table entries: 128 Virtual interfaces (VLANs): 4096
MAC Address Table Size 128K entries
Jumbo Frame Support Yes
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, DHCP support, ARP support, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), LLDP support, Data Center Bridging (DCB), Management Information Base (MIB), NTP time synchronization, Class of Service (CoS), Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), FCoE support
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
RAM 2 GB SDRAM
Flash Memory 512 MB
Expansion / Connectivity
Interfaces 40 x Gigabit / 10Gbit LAN SFP+ 2 x 40Gbit LAN QSFP+ uplink 1 x serial (console) RJ-45 management 1 x USB 2.0 management 1 x RJ-45 management
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Consumption Operational 162 Watt
Software / System Requirements
OS Required Comware v7
