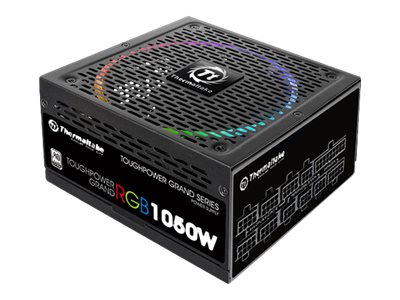

Thermaltake ToughPower Grand RGB TPG-1050AH3FCP - power supply - 1050 Watt
Thermaltake ToughPower Grand RGB TPG-1050AH3FCP - power supply - 1050 Watt
- Price:
$324.99
- Availability:
- Mfr #: PS-TPG-1050F1FAPU-1
- UNSPSC #: 39121004
- Item #: 005298742
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 120,000 hours |
| Cooling System | 140 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, hydraulic bearing cooling fan, fully modular |
| Compliant Standards | BSMI, CCC, FCC, cTUVus, ErP Ready, TUV SUD, EAC |
Dimensions & Weight
| Width | 5.9 in |
| Depth | 6.3 in |
| Height | 3.4 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 10 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
General
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Color | Black |
Power Device
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 12 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 13 A |
| Power Capacity | 1050 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 83.83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
