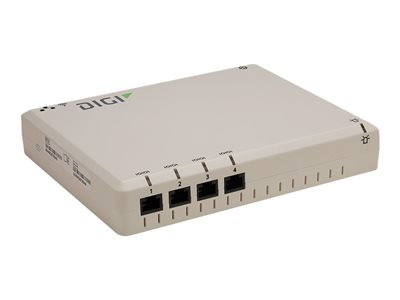

Digi Connect WS - device server

Digi Connect WS - device server

  • Price:
    $719.99
  • Availability:
  • Mfr #:  DC-WS-4-INT
  • UNSPSC #:  43222630
  • Item #:  005633811
  • Add to Shopping List
  • cnet cat code #:  1005
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Compliant Standards ICES-003, IEC 61000-4-4, IEC 61000-4-5, EN55024, IEC 60601-1-2, RSS-210, EN 62311, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 60601-1-1, EN 301489-1, EN 301489-17, EN 300 328 V1.8.1
Networking
Form Factor External
Ports Qty 4
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol TCP/IP
Remote Management Protocol SNMP, HTTP, HTTPS
Status Indicators Power, LAN, wireless, serial
Encryption Algorithm AES, SSL, TLS, TKIP, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11w
Environmental Parameters
Min Operating Temperature 50 F
Max Operating Temperature 104 F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Device server
Width 7.9 in
Depth 6.3 in
Height 1.6 in
Weight 2.2 lbs
Localization Worldwide
Expansion / Connectivity
Interfaces 4 x RS-232 - RJ-45 1 x 100Base-TX - RJ-45
Power
Power Over Ethernet (PoE) Supported PoE
Power Device Internal power supply
Voltage Required AC 120/230 V
