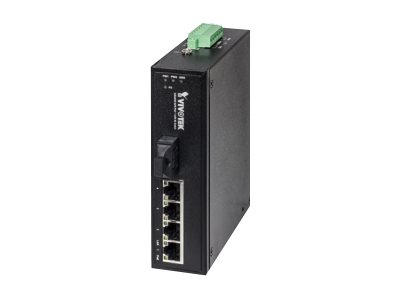

Vivotek AW-IHT-0501 - switch - 5 ports
Vivotek AW-IHT-0501 - switch - 5 ports
- Price:
$227.99
- Availability:
- Mfr #: AW-IHT-0501
- UNSPSC #: 43222612
- Item #: 007676875
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
| Included Accessories | Mounting brackets |
| Compliant Standards | VCCI, C-Tick, FCC, LVD, IP30 |
Dimensions & Weight
| Width | 4.1 in |
| Depth | 5.6 in |
| Height | 1.4 in |
| Weight | 1.06 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 5 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE+) + 1 x 100Base-FX |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Max Transfer Distance | 1.2 miles |
| Performance | Backplane speed: 1 Gbps |
| MAC Address Table Size | 1000 entries |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| RAM | 128 KB |
| Status Indicators | Power, error, PoE, LAN |
Expansion / Connectivity
| Interfaces | 4 x 100Base-TX RJ-45 PoE+ - 30 W ¦ 1 x 100Base-FX SC multi-mode |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC 44 - 56 V |
| Power Consumption Operational | 126 Watt |
